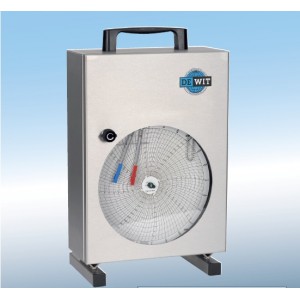

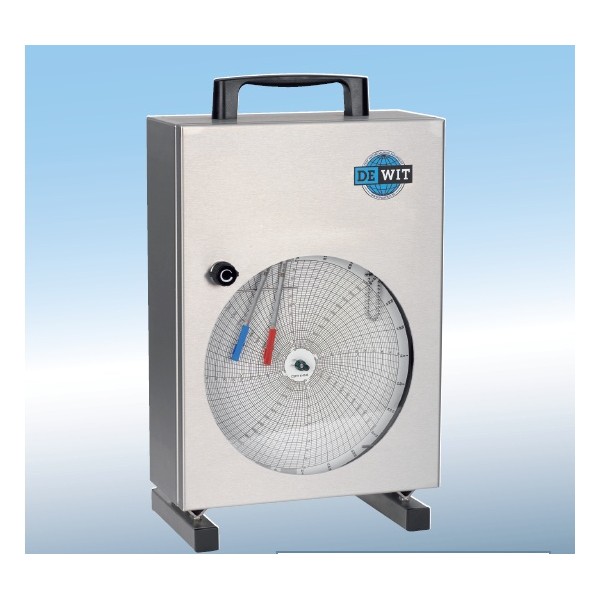

12 Inch Chart Recorder

12 Inch Chart Recorder

- Outline dimensions 336 x 463 x 150 mm,suitable for wall or panel mounting

- Case material St. Steel AISI 316,weatherproof

- Recording with disposable feltpen on 12"recorder charts

- Mechanical spring wound clockwork,24 hrs (clockwise)

- Window laminated safety glass, scratchproof

- Connection bottom (wall mounting) orback (panel mounting, portable version)¼” NPT female

More details

- Accuracy class 2,0 for pressures of25.000 psi and 30.000 psi

- Minimum temperature span: 60 °C

- Minimum pressure range: 0-500 psi

- Maximum pressure range: 0-30.000 psi

- Minimum temperature: -170 °C

- Maximum temperature: +600 °C

- Portable execution (add T to modelnumber)

- Yoke mounting (2" pipe, add Y to modelnumber)

- Mechanical spring wound clockwork revolution time 1 hr, 4 hrs, 8 hrs, 12 hrsor 7 days (clockwise, optional anticlockwise)

- Mechanical spring wound switchableclockwork revolution times 1 hour/15minutes, 1 hr/4 hrs, 24 hours/7 days(clockwise)

- Battery operated multi-programmableSonceboz clock (anti-clockwise)

- Other ranges and process connections available upon request

- Dual pen, triple pen

- Special executions to customer’s special requirements

- Pressure containing parts 316 SS to NACE(sour gas service)

- Accuracy class 1,0 for pressures upto20.000 psi
