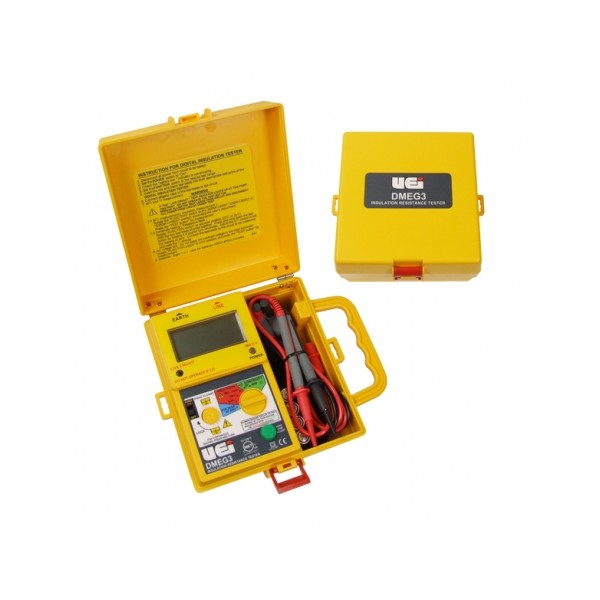

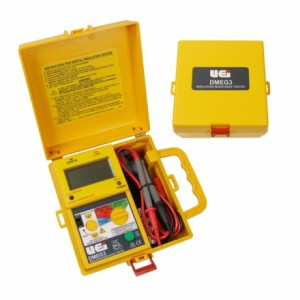

DMEG3 Digital Insulation Resistance Tester

DMEG3 Digital Insulation Resistance Tester
  • Large digital display shows the test function and measured value
  • 600V AC measurement capability
  • Insulation resistance ranges 0 – 2000MΩ
  • Three test-voltage ranges (250, 500, 1000V DC)
  • Live circuit warning light
  • Fuse protected

More details

  • Precision resistance 0.01Ω with audible continuity
  • 200 mA short-circuit continuity test current for high accuracy
  • Precision, low resistance test leads (1000 Volt CAT III rated)
  • Audible continuity
  • Green LED power-on indicator
  • Low battery indication/detection
  • Maintains rated voltage on cables with up to 1 mA leak-rate
  • Automatic, post-test cable discharge
  • Rugged, compact case with protective cover
  • 3 Year limited warranty
